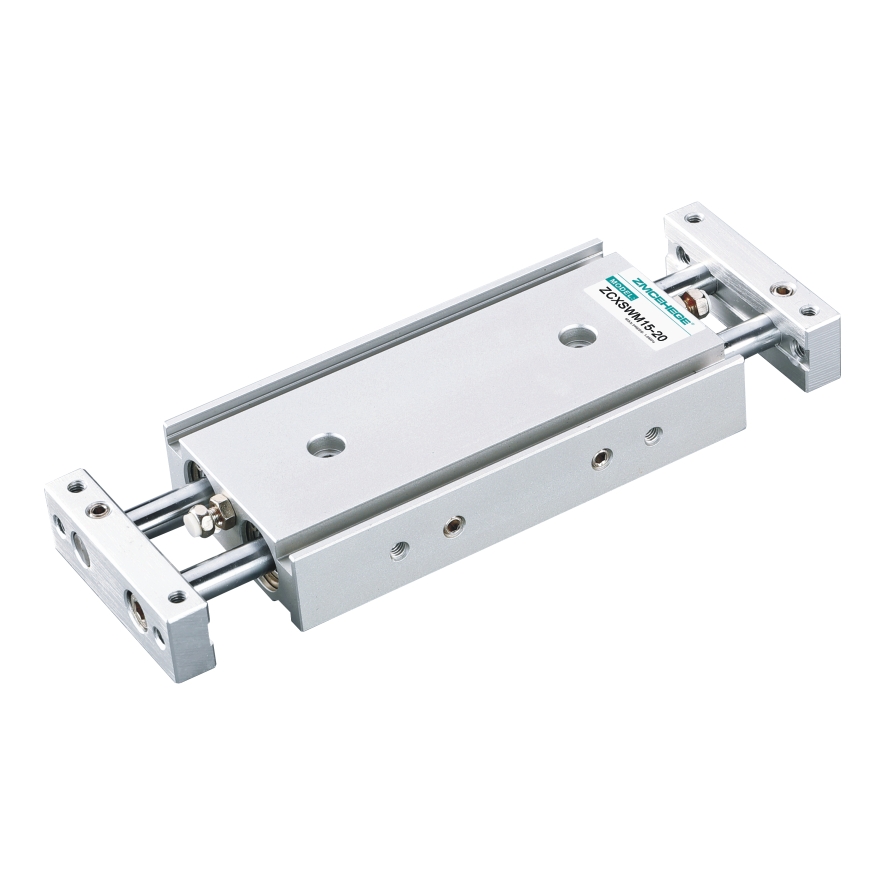

通杆型双缸气缸

Product Description

·The maximum allowable load is 2-3 times larger than the ZCXS series

·最大容许负载比ZCXS系列大2~3倍

·Dual cylinder design with 2 times output force

·双气缸设计，2倍输出力

·High precision of non-rotating

·不回转精度高

·Strong lateral load resistance

·侧面负载抵抗力强

·Standard with stroke adjuster: 0~-10mm

·标准带行程调整装置：0~-10mm

Categories

tel-phone

13817455525

DetailMessage

缸径(mm)	6	10	15	20	25	32
Using fluid 使用流体	Air 空气
Action mode 动作方式	Double action 双作用
Maximum operating pressure MPa 最高使用压力MPa	0.7
Minimum operating pressure MPa 最低使用压力MPa	0.15			0.1
Environment and fluid temperature 环境和流体温度	-10～+60℃(but not frozen) -10～+60℃(但未冻结)
Buffer 缓冲	Rubber buffer at both ends 两端橡胶缓冲
Piston speed used mm/s 使用活塞速度mm/s	50~500
Structure 结构	Double cylinder (2 times output force) 双气缸(2倍输出力)
Oil supply 给油	No need 不需要
Stroke adjustment range 行程调整范围	0~-10mm
Bearing 轴承	Sliding bearing / ball bearing 滑动轴承/球轴承
Connecting pipe bore 接管口径	M5×0.8			Rc1/8
